4GD Series & 3PA Series Manifold

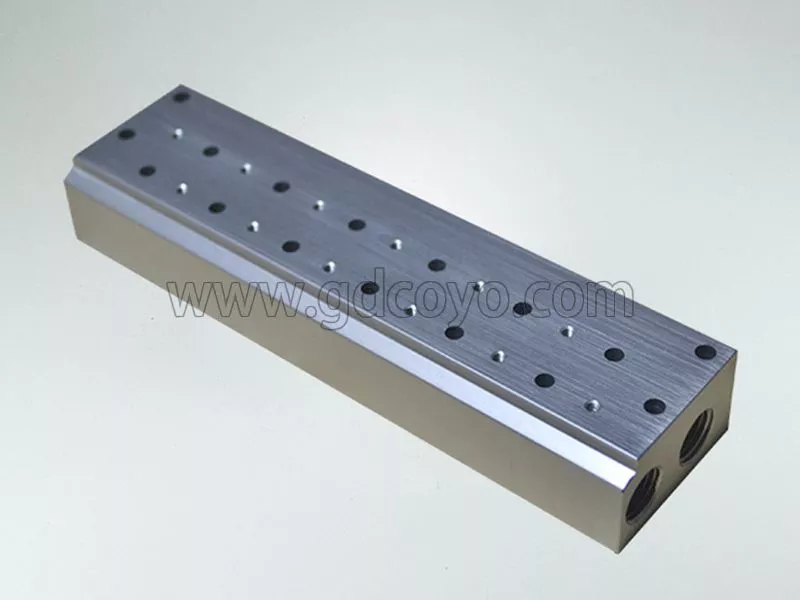

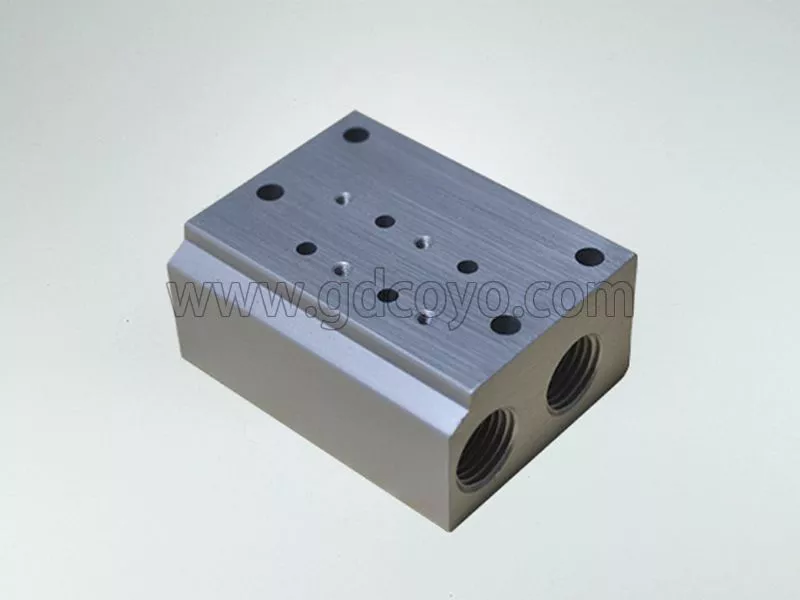

Aluminum manifold block rectangle pneumatic solenoid valve

Brand name: COYO

Product Model: 3PA110 Series

Material: Aluminum in Barcol hardness 95

Medium: Gas

Color: Primary color of aluminum

Product Application Area

Processed by customzied aluminum, Mount 3PA1 series solenoid valve.

Share:

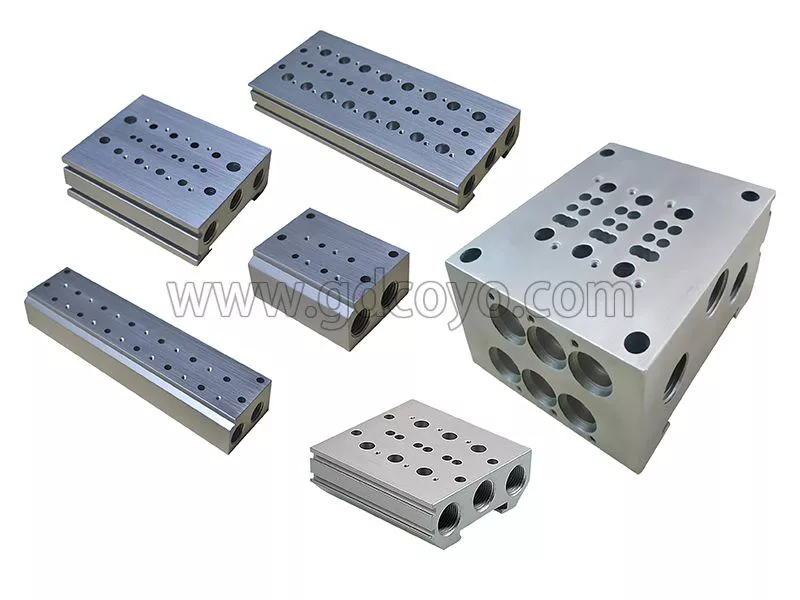

Aluminum Hydraulic Manifold Block

An aluminum hydraulic manifold block is a component used in hydraulic systems to distribute hydraulic fluid or oil to different components or actuators. The manifold block is typically made of aluminum due to its strength, durability, and resistance to corrosion.

The manifold block has multiple ports and channels that allow hydraulic fluid to flow to different parts of the system. It is often used in hydraulic power units, industrial machinery, and mobile equipment such as excavators, loaders, and bulldozers.

One of the advantages of using an aluminum manifold block is its lightweight construction, which makes it easy to install and transport. Additionally, aluminum is a good conductor of heat, which allows for efficient dissipation of heat generated by the hydraulic system.

The design of the manifold block can vary depending on the specific application and system requirements. Some blocks may have integrated valves or other components, while others may have a simple, basic design. It is important to select the appropriate manifold block based on the system's hydraulic flow rate, pressure, and other specifications.

Aluminum Hydraulic Manifold Block Advantage

Aluminum hydraulic manifold blocks offer several advantages over other materials like steel or cast iron. Some of these advantages include:

Lightweight: Aluminum is a lightweight material, making it easier to handle and install compared to steel or cast iron.

Corrosion-resistant: Aluminum has excellent corrosion resistance properties, making it ideal for use in harsh environments or applications where there is exposure to chemicals or saltwater.

High strength-to-weight ratio: Aluminum has a high strength-to-weight ratio, making it strong and durable while still being lightweight.

High thermal conductivity: Aluminum has high thermal conductivity, which means it can dissipate heat quickly and efficiently, reducing the risk of overheating or damage to the hydraulic system.

Machinability: Aluminum is easy to machine and shape, making it possible to create complex shapes and designs with high precision.

Cost-effective: Aluminum is often more cost-effective than other materials like stainless steel or cast iron, making it a popular choice for many hydraulic applications.

4GD Series

4GD Series

4GD Series

4GD Series

4GD Series

4GD Series


4GD Series & 3PA Series Manifold.pdf
