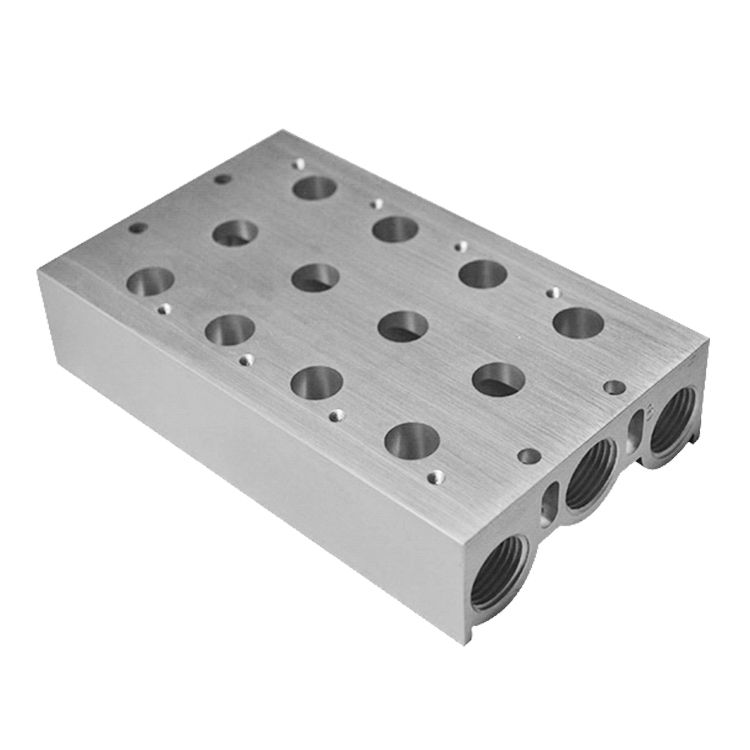

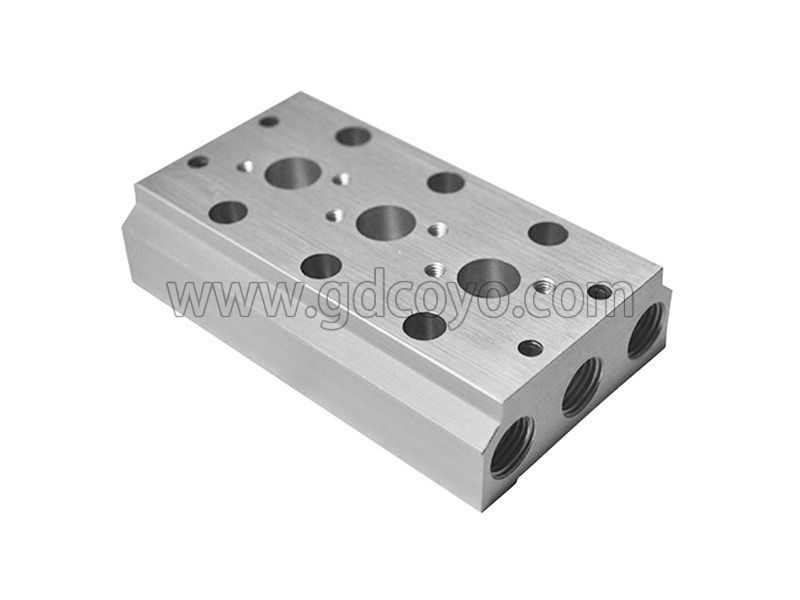

Pneumatic manifolds provide a convenient junction point for the distribution of fluids or gases and are used to provide pneumatic power to two or more locations to supply multiple tools. Simply thread pneumatic fittings into the ports of the distribution block to produce an organized method of supplying multiple lines from a single source. Air manifolds come in various port options and different material types for low and high-pressure applications.
We offer a wide selection of styles and sizes to ensure that your plumbing and installation requirements are met.
Pneumatic Manifold Advantages
2 to 10 station air manifolds
Variety of sizes & configurations
Aluminum, brass, stainless steel, polypropylene & nylon materials
Aluminum pneumatic manifolds are black anodized for corrosion resistance
A pneumatic manifold block offers several advantages in pneumatic system design and operation. Here are some of the key advantages:
Simplified Pneumatic Circuit Design: A manifold block provides a centralized platform for integrating multiple pneumatic components, such as valves, pressure regulators, flow controls, and sensors, into a single assembly. This simplifies the overall circuit design by reducing the number of individual connections and tubing required.
Space Efficiency: By consolidating multiple components into a single block, a manifold saves space in the system layout. This is especially beneficial in applications where space is limited or when trying to optimize the compactness of the system.
Reduced Leak Points: With fewer connections and tubing, the number of potential leak points is minimized. This enhances system reliability and reduces the risk of pneumatic leaks, which can lead to decreased performance and increased maintenance requirements.
Easy Installation and Maintenance: Manifold blocks are designed for easy installation and maintenance. They typically feature standardized mounting and connection interfaces, allowing for straightforward integration into the system. When maintenance or troubleshooting is required, it is easier to access and service a manifold block compared to individual components scattered throughout the system.
Improved System Performance: Manifold blocks offer efficient airflow distribution and reduce pressure drops compared to using multiple individual components. This helps to maintain consistent and reliable pneumatic performance, ensuring the proper functioning of the system.
Modular and Flexible Design: Many manifold blocks have a modular design, allowing for customization and expansion of the pneumatic system. Additional components can be easily added or removed as needed, providing flexibility in system configuration.
Cost Savings: While the initial cost of a manifold block may be higher than purchasing individual components, the overall cost savings can be significant. By reducing the number of components, connections, and tubing required, manifold blocks can lower material costs, assembly time, and labor costs associated with the system.
Pneumatic manifold blocks find applications in a wide range of industries and systems where pneumatic control is required. Some common applications include:
Industrial Automation: Pneumatic manifold blocks are extensively used in industrial automation systems for tasks such as controlling actuators, operating pneumatic cylinders, and managing pneumatic valves. They provide a centralized control platform for multiple pneumatic components, enabling efficient and reliable operation of the automation system.
Robotics: Pneumatic systems play a crucial role in robotics for tasks such as gripping, lifting, and manipulating objects. Manifold blocks are used to control the pneumatic actuators and valves in robotic arms, simplifying the control and ensuring precise and coordinated movements.
Packaging and Material Handling: Pneumatic systems are commonly employed in packaging and material handling applications. Manifold blocks are utilized to control the pneumatic cylinders and actuators that drive conveyor belts, sorting mechanisms, and packaging equipment. The centralized control provided by manifold blocks enhances the efficiency and reliability of these systems.
Automotive Industry: Pneumatic manifold blocks are used in various pneumatic control systems within the automotive industry. They play a role in controlling air brakes, suspension systems, pneumatic clutches, and other pneumatic components in vehicles. The compactness and reliability of manifold blocks make them suitable for automotive applications.
Medical Equipment: Pneumatic systems are utilized in medical equipment for tasks such as precise control of fluid flow, pneumatic actuation, and pressure regulation. Manifold blocks are employed to streamline the control and integration of pneumatic components in medical devices, such as surgical instruments, hospital beds, and respiratory equipment.
HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems often incorporate pneumatic controls for regulating airflow, temperature, and pressure. Manifold blocks are used to control the pneumatic valves, dampers, and actuators in HVAC systems, providing efficient and responsive control over the air handling processes.
Semiconductor Manufacturing: Pneumatic systems are critical in semiconductor manufacturing processes, where precise control of gas flows and pressure is required. Manifold blocks are used to distribute and control the flow of process gases, ensuring accurate and reliable operation of semiconductor fabrication equipment.
